Size
- 45.6 mm × 45.6 mm × 11.25 mm
*The values for product size, weight, and related specifications are theoretical only. Actual dimensions may vary for each individual product. All specifications depend on the actual product.
wrist size
The headset
the weight
- Approximately 54.7g (without the belt)
*Product size, weight, and related specifications are theoretical values only. Actual dimensions may vary for each individual product. All specifications depend on the actual product.
screen
Size
- 1.47-inch AMOLED color screen
Accuracy
- 466 x 466 pixels, 317 pixels per inch
Watch box
Watch strap

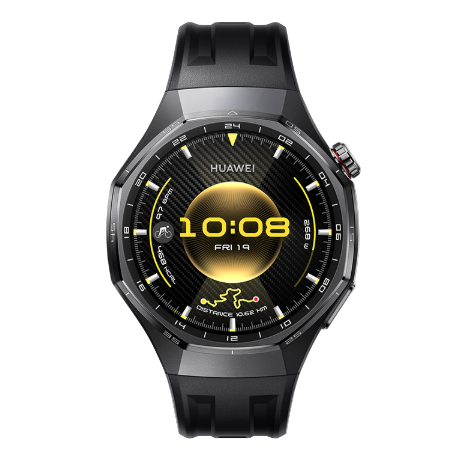

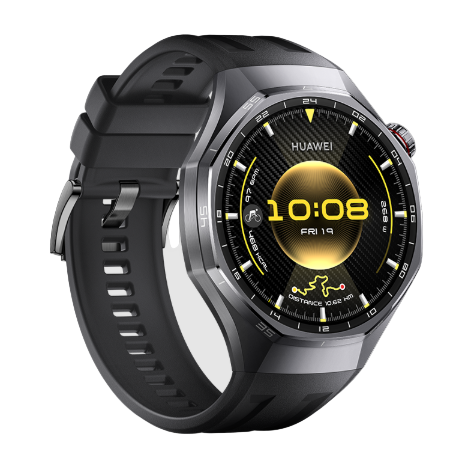

- Black fluorescent rubber belt

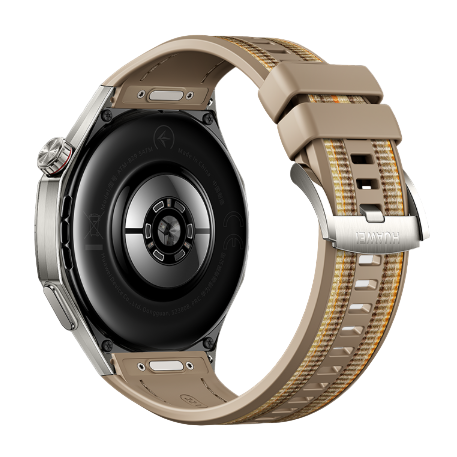

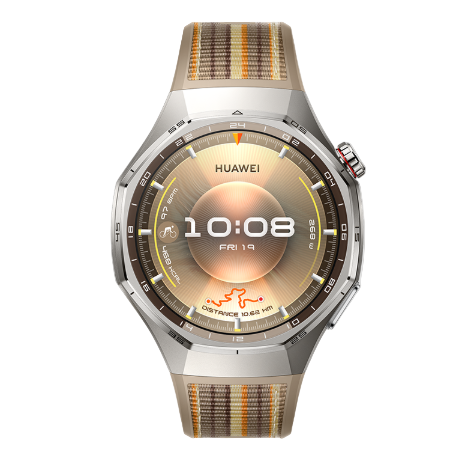

- brown composite woven belt

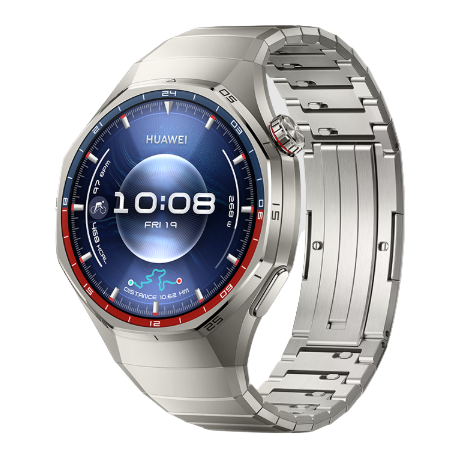

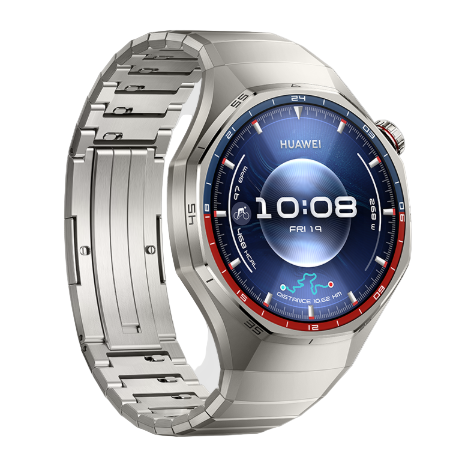

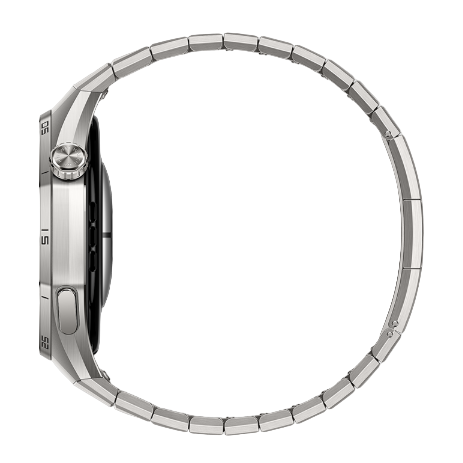

- Titanium belt

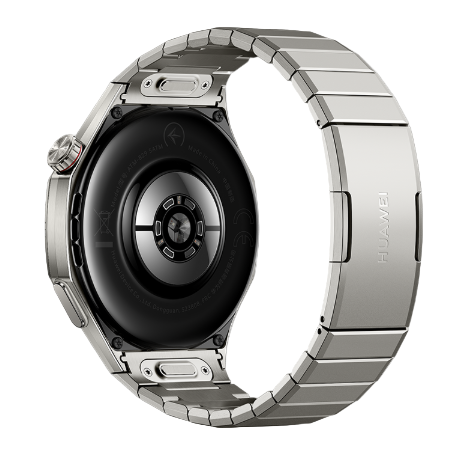

sensor
- Accelerometer sensor
- gyroscope sensor
- magnetometer sensor
- Optical heart rate sensor
- barometer sensor
- Temperature sensor
- Ambient light sensor
- ECG sensor
- Depth sensor
button

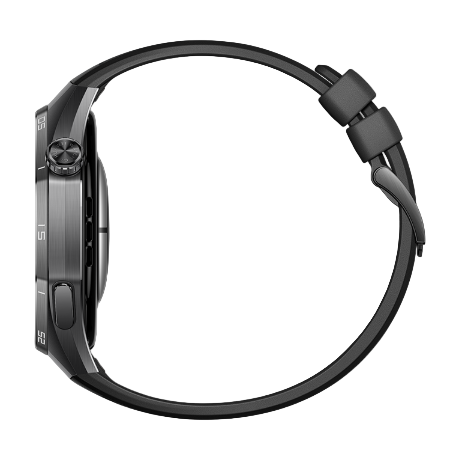

- Home button (rotating crown) and side button
Charging port
System requirements
- Android 9.0 or later
- iOS 13.0 or later
resistance level
5 ATM
*This product conforms to the rated water resistance level of 5 ATM under ISO 22810:2010, which indicates that the device can withstand a constant water pressure of 50 meters for 10 minutes, and does not mean that the product can withstand water at a depth of 50 meters.
IP69
This product meets the IP69 water resistance standard according to IEC 60529:2013. The IPX9 test conditions are as follows: water temperature: 80 ± 5°C; water flow rate: 15 ± 1 L/min; water pressure: 10,000 ± 500 kPa; spray angles: 0°, 30°, 60°, and 90°, 30 seconds per angle. This does not indicate protection during hot showers.
Diving (up to a depth of 40 meters)
This product complies with the EN13319 standard for diving accessories and supports freediving to depths of up to 40 meters. It can be worn during shallow-water activities such as swimming in a pool or along the coast. After using the device during water activities, clean and dry it immediately, removing any water spots from the product's surfaces and all openings. Use the device's drainage feature to avoid negatively impacting its performance.
The product should not be worn in the following scenarios: (The warranty does not cover damage to the device due to immersion in liquid if worn in an unsuitable scenario). (1) When showering in hot water, in hot springs, saunas (steam rooms), and other activities performed in high-temperature and/or high-humidity environments. (2) Activities that may expose the device to shower gel, shampoo, water, soap, and any other washing or cleaning products. If the device comes into contact with any of these products, rinse and soak it in fresh water for 30 minutes. (3) Scuba diving, technical diving, and diving activities to depths greater than 40 meters. (4) Straps made of synthetic vegan leather, synthetic woven fabric, titanium, and ceramic are not designed for water activities (such as swimming) or to withstand perspiration; therefore, it is recommended to use other straps in such scenarios.
For more information about Huawei wearables' water resistance, please visit:https://consumer.huawei.com/en/support/content/en-us15851428/.
Water resistance is not permanent, and performance may degrade with daily use. It is recommended to take the device regularly to an authorized Huawei service center for inspection and maintenance.
Contact
NFC
Bluetooth
- 2.4 GHz, supports BT6.0 and BR+BLE
GNSS system
- GPS (L1 + L5 dual-band) / GLONASS / BeiDou (B1I + B1C + B2a tri-band) / Galileo (E1 + E5a dual-band) / QZSS (L1 + L5 dual-band) / NavIC
microphone
the environment
- Ambient operating temperature
-20°C to +45°C
Inside the package
- 1 x Clock
- Charging stand (including charging cable) x 1
- Quick Start Guide, Safety Information, and Warranty Card x1
